75kg Full Bridge Flat Micro Load Cell for Weighing 5V-10 VDC Excitation Voltage 1.5-2.0 mV/V Rated Output

Series : Micro Load Cell

Features : small sensor

Mounting Type : Fixed installation

Description : Can be consulted, full bridge micro 75kg load cell

Manufacturing Date Code : 2023-5-5

Model Number : SC135

Type : Load Cell

Place of Origin : Guangdong, China

Brand Name : SNC

Use : weight measure

Theory : strain gauge sensor

Output : 2mv/v

item : flat and thin micro force load cell

Capacity : 30kg-300kg

Material : alloy steel load cell

Accuracy class : 0.05% full scale

rated output : 1.5~2.0 mV/V

Excitation voltage : 5V-10 VDC

IP grade : IP65 waterproof

Bridge : full bridge

Connector : support JST or other connectotrs

Optional : HX711 load cell amplifier

Price : $6/pieces 1-1 pieces

Contact Now

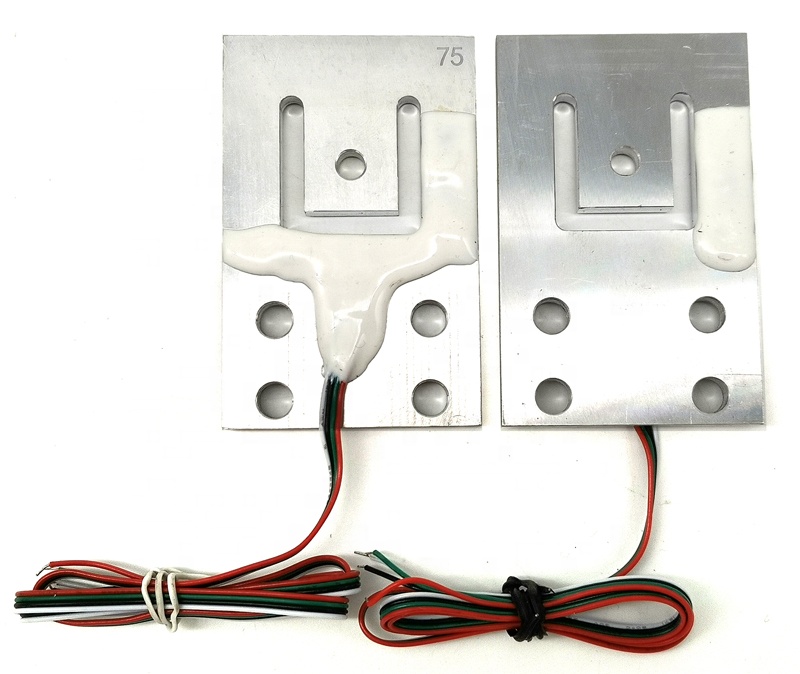

SC135 Full bridge weight sensor flat micro load cell 75kg load cell thin small flat weight sensor load cell 300kg

Product Description

75kg Full Bridge Flat Micro Load Cell for Weighing 5V-10 VDC Excitation Voltage 1.5-2.0 mV/V Rated Output

Parameters

Capacity Range	30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 300kg, 600kg
Rated Output	Refer to table above
Accuracy	0.05%F.S.
Non-Linearity	±0.05%F.S
Hysteresis	±0.05%F.S.
Repeatability	±0.05%F.S.
Creep	±0.05.[(2min)%F.S ]
Zero Output	± 0.1 mV/V
Temp.Effect on Zero	±0.05 (%F.S./10℃)
Temp.Effect on Span	±0.05 (%F.S./10℃)
Input Impedance	1130 ± 20Ω
Output Impedance	1000 ± 10Ω
Insulation Resistance	≥2000MΩ (50VDC)
Temp. Compensation Range	0-+40℃
Operating Temp.Range	-10℃~+40℃
Recommended Excitation Voltage	5-10VDC
Safe Overload	120%
Ultimate Overload	150%
Cable Length	ø0.8mm, 30kg/75kg:40cm long, 150kg/300kg:15cm long
Protection Class	IP65
Connection	Excitation: Red+, Black-. Signal: Green +, White-

75kg Full Bridge Flat Micro Load Cell for Weighing 5V-10 VDC Excitation Voltage 1.5-2.0 mV/V Rated Output

Load cell Accessorie

75kg Full Bridge Flat Micro Load Cell for Weighing 5V-10 VDC Excitation Voltage 1.5-2.0 mV/V Rated Output

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

75kg Full Bridge Flat Micro Load Cell for Weighing 5V-10 VDC Excitation Voltage 1.5-2.0 mV/V Rated Output

Why Choose Us

75kg Full Bridge Flat Micro Load Cell for Weighing 5V-10 VDC Excitation Voltage 1.5-2.0 mV/V Rated Output

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
